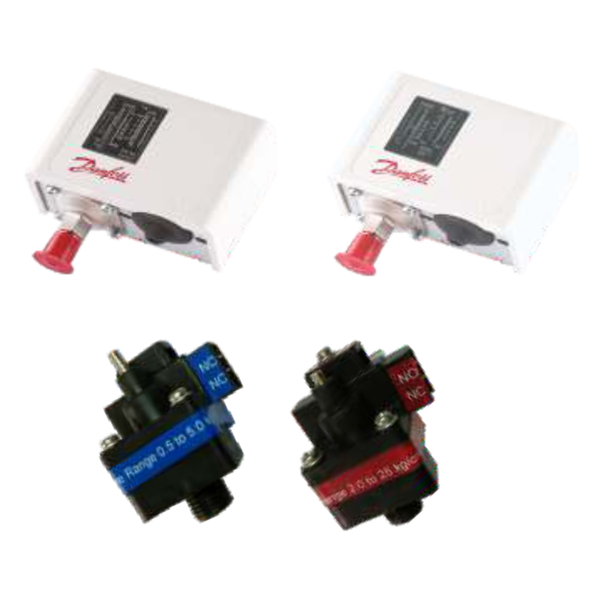

Danfoss KP pressure controls are used for regulating, monitoring and
alarm systems in industry. KP pressure controls are for gaseous media, air and
liquid. KPI pressure controls are suitable for plant in connection with liquid and
gaseous media.The pressure controls are itted with a singlepole switch changeover
(SPDT). The position of the switch depends on the setting of the pressure control
and the pressure in the connector.
FEATURES
Wide regulating range
Can be used for pumps and compressors
Small dimensions.
Space-saving – easy to install in panels
Shock and impact resistant
Ultra-short bounce times
Limits wear to an absolute minimum and increases reliability
Electrical connection from front of unit
Makes rack mounting easier and also saves space
Suitable for both alternating current and direct current
Cable entry for 6-14 mm diameter cables
Screwed cable entry makes rewiring easy.
Standard screwed cable
DEFINITIONS RANGE SETTING
The pressure range within which the unit will give a signal (contact
changeover).
Differential
The difference between contact changeover on rising and falling
pressure. The differential is a condition for stable automatic plant operation.
Automatic reset
Units with automatic reset restart automatically after stop.
Min. reset units will restart after the pressure has risen by a
value greater than that of the ixed differential.
Max. reset units will restart after the pressure has fallen by
a value greater than that of the ixed differential
Permissible operating pressure
The highest permissible constant pressure or pressure variation the
unit can be exposed to.
